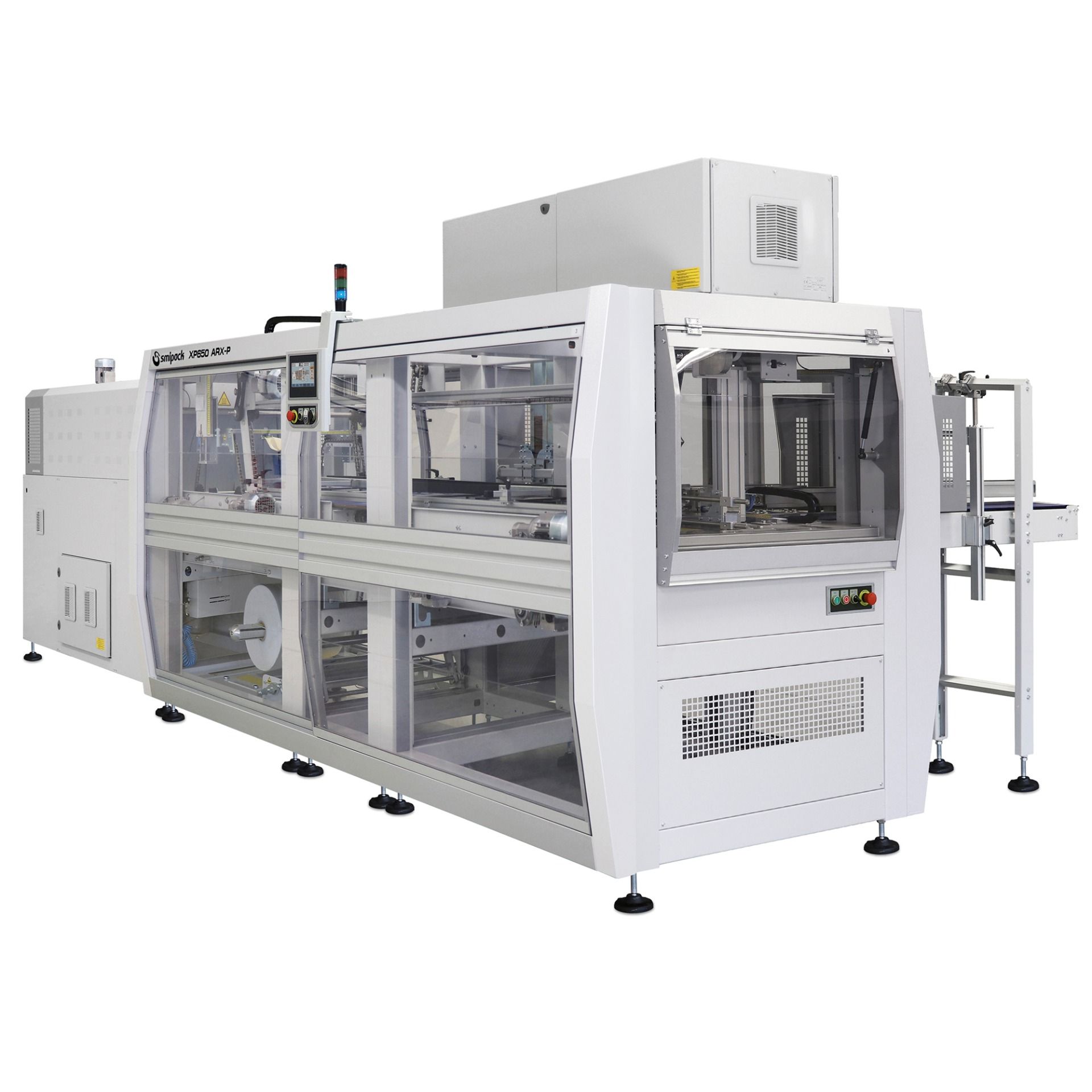

XP650 ARX-P

90° infeed automatic overlap shrink wrapper film + pad

Od 0,00 KM

The XP series of automatic monobloc overlap shrink wrappers offers many advantages compared to other packaging systems, such as the use of a single film reel compared to the sealing bar system. These models are also suitable for centering the printed film and enable to significantly increase the output. The XP series is particularly suitable to pack glass and PET bottles, cans, boxes, trays, jars, etc. in film only, pad + film or tray + film. It can have up to 6 infeed lanes, automatic pack collation and product sorter. The XP Series can reach productions up to 25 packs/minute.

Features

Power supply	220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz
Installed power	35800 W
Sealing bar
Maximum pack height	380 mm
Maximum output	25 ppm
Maximum size of ilm reel	650 x ID 400 mm
Machine size	6715 x 3355 mm x H2150-2310 mm
Working height	1045 - 1205 mm
Machine weight	2360 kg
Film: LDPE	25 - 80 mic
Air pressure	6 bar/ 9Nl/p
