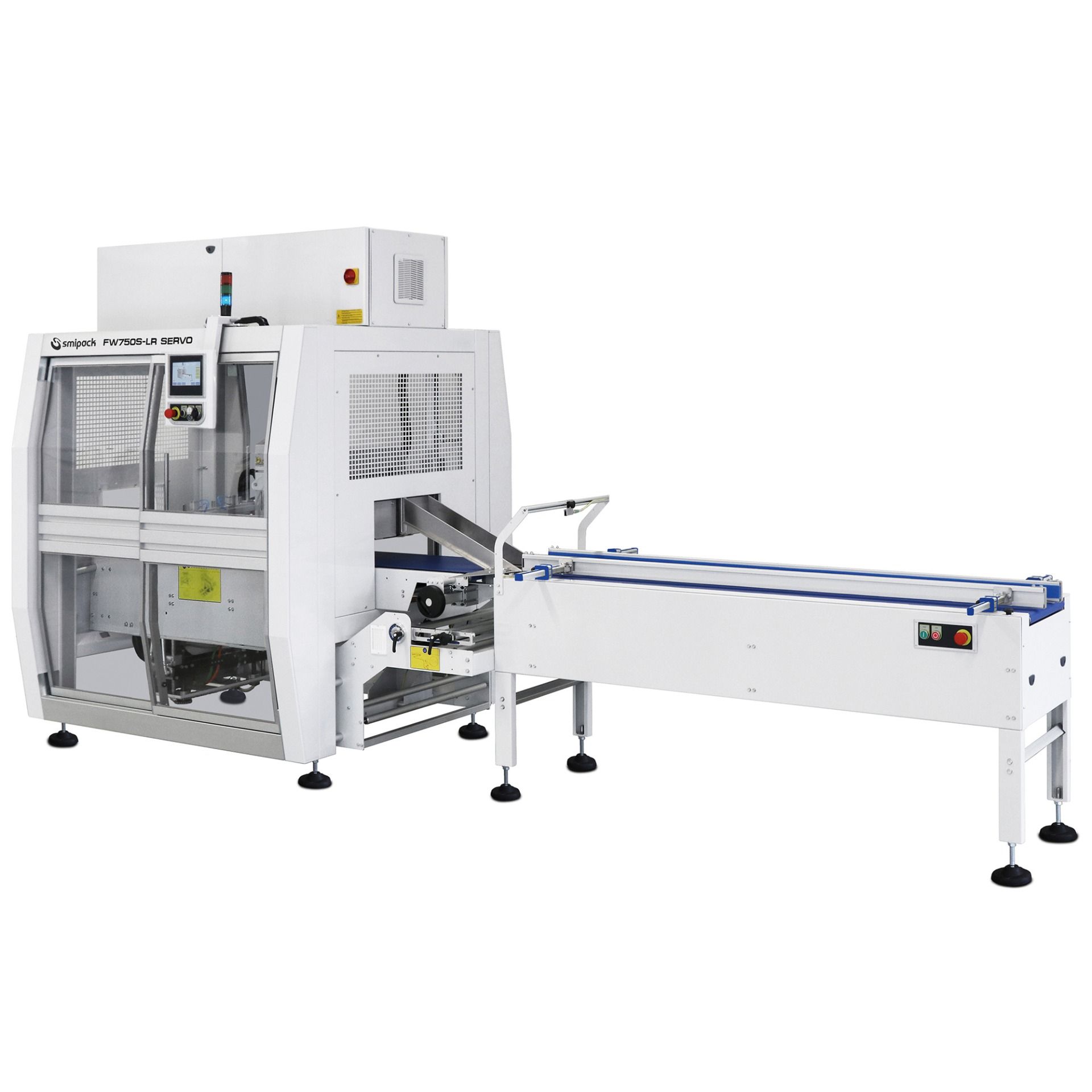

FW750S-LR SERVO
Flow pack with box motion sealing & lower film reel

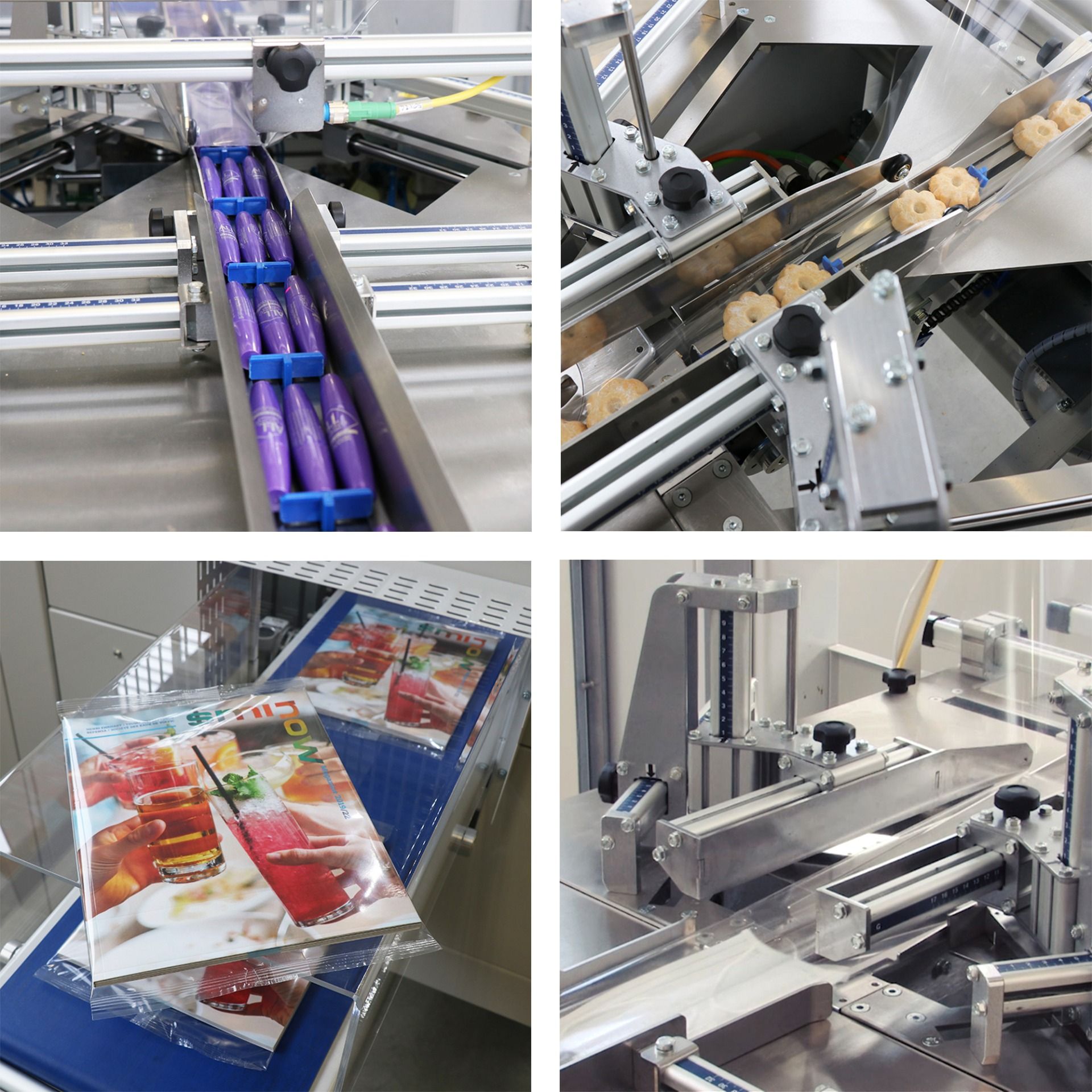

This flow pack machine (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. It is a medium-high speed machine with lower reel and stands out for the presence of a cross sealing bar with box motion system, both controlled by servomotors. The translating movement allows to pack a wide variety of long-life products (through injection of gas or nebulization of preservative flavorings) with different sizes and heights, without machine downtime, in packages made with simple or coupled flexible material (including polyethylene/polyolefin film). They can reach a maximum output of 80 products/minute.
| Power supply | 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz |
| Installed power | 8200 W |
| Air pressure | 6 bar |
| Sealing bar | 350 mm |
| Maximum pack height | 200 mm |
| Average output up to | 80 ppm |
| Maximum size of film reel | 750 - ID 350 mm |
| Machine size | 5020 x 1375 x H2155-2255 mm |
| Machine weight | 1050 kg |
