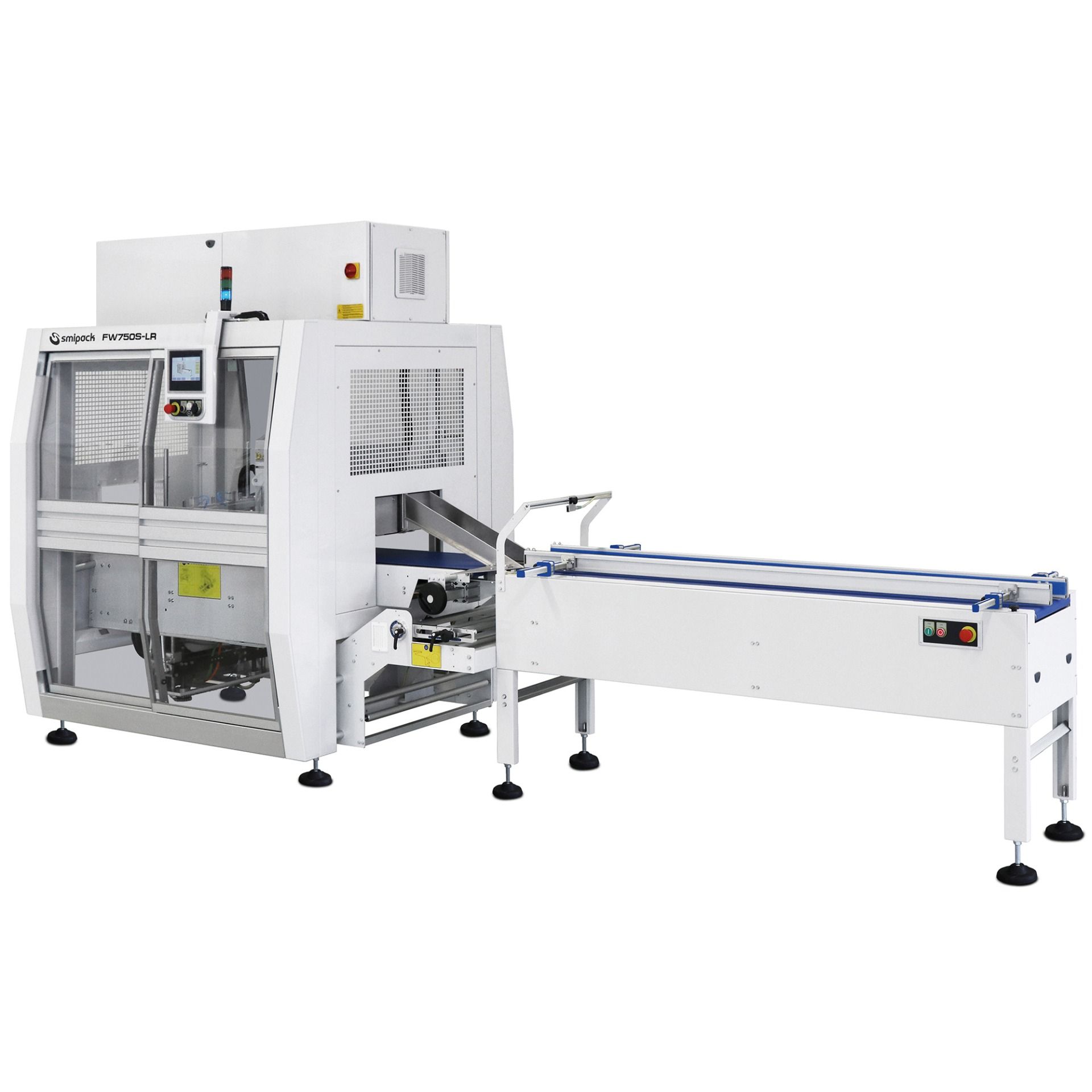

FW750S-LR

Flow pack with intermittent sealing & lower film reel

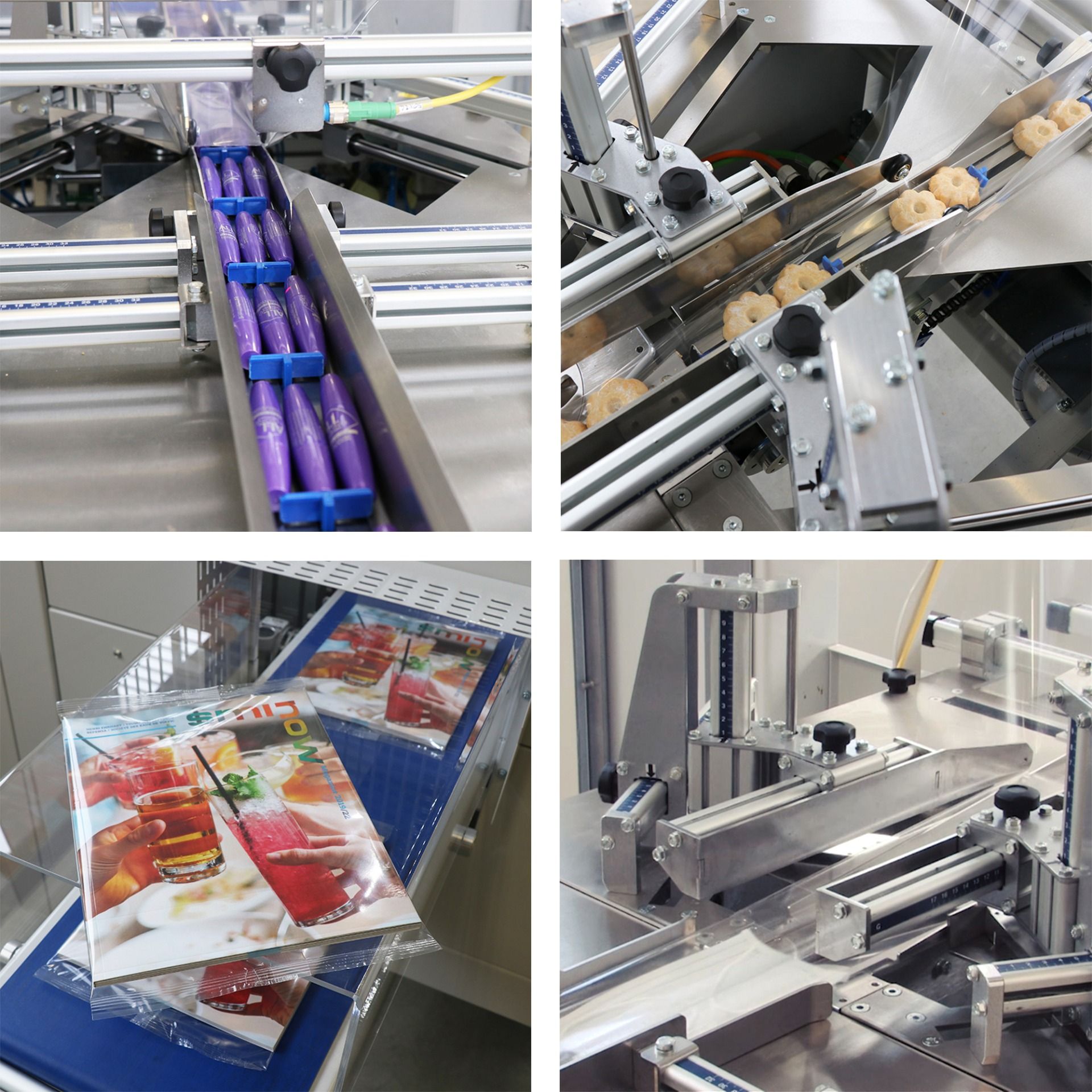

This flow pack machine (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. It is a low speed speed machine with lower reel and is equiped with a cross sealing bar controlled by an intermittent motion servomotor. The movement allows to pack a wide variety of long-life products (through injection of gas or nebulization of preservative flavorings) with different sizes and heights, without machine downtime, in packages made with simple or coupled flexible material (including polyethylene/polyolefin film). They can reach a maximum output of 40 products/minute.
Power supply 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz
Installed power 6400 W
Air pressure 7 bar
Sealing bar 350 mm
Maximum pack height 200 mm
Average output up to 40 ppm
Maximum size of film reel 750 - ID 350 mm
Machine size 5020 x 1375 x H2155-2255 mm
Machine weight
