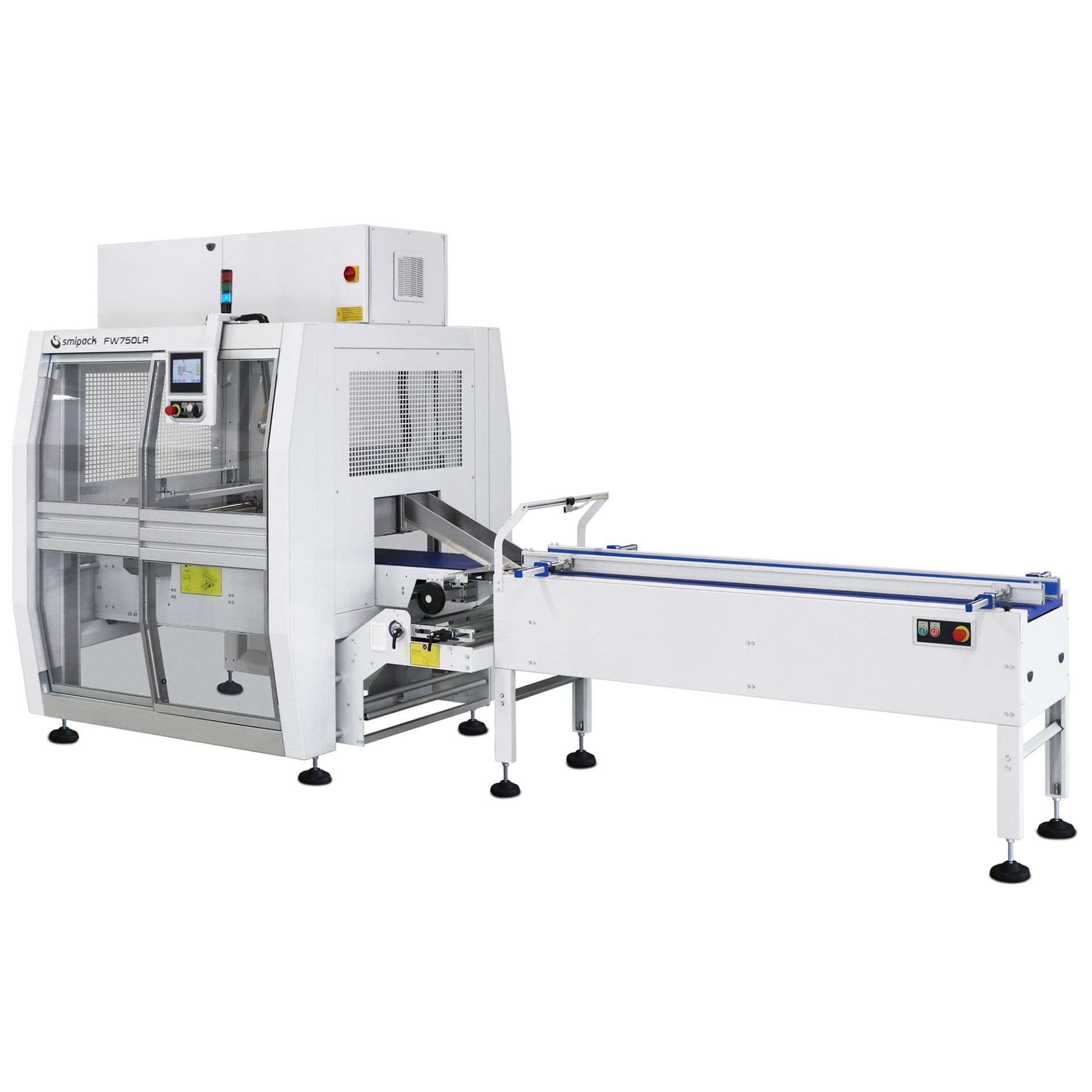

FW750LR

Flow pack with rotary sealing & lower film reel

This automatic packaging machine with flow pack system (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. This version with rotary bar sealing system and lower reel packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack). The products are placed in packages made up of simple or coupled flexible material with a maximum output of 100 products/minute.
Power supply 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz
Installed power 5900 W
Air pressure 6 bar
Sealing bar 350 mm
Maximum pack height 120 mm
Average output up to 100 ppm
Maximum size of film reel 750 - ID 350 mm
Machine size 4085 x 1580 x H2155-2255 mm
Machine weight
