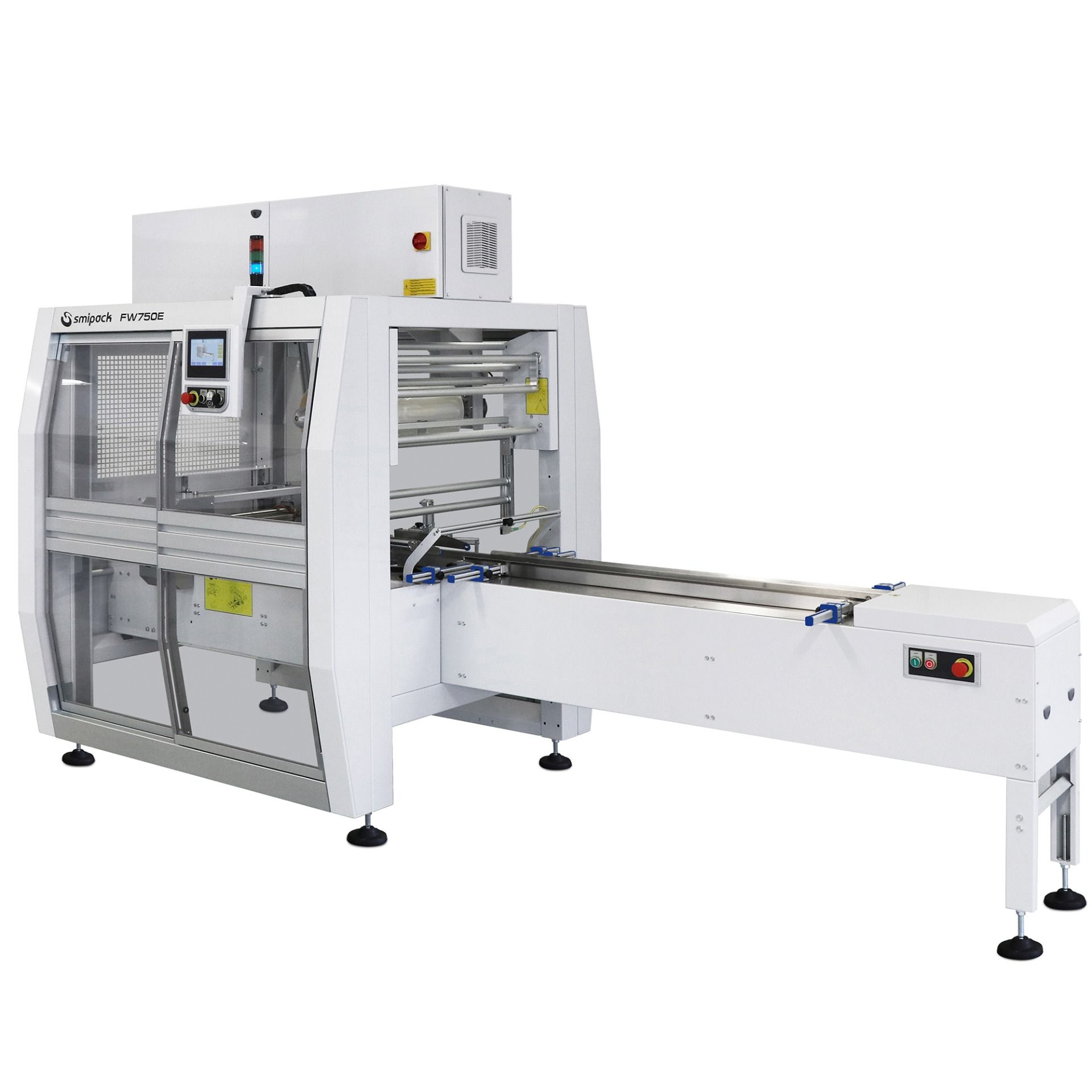

FW750E
Flow pack with rotary sealing & upper film reel

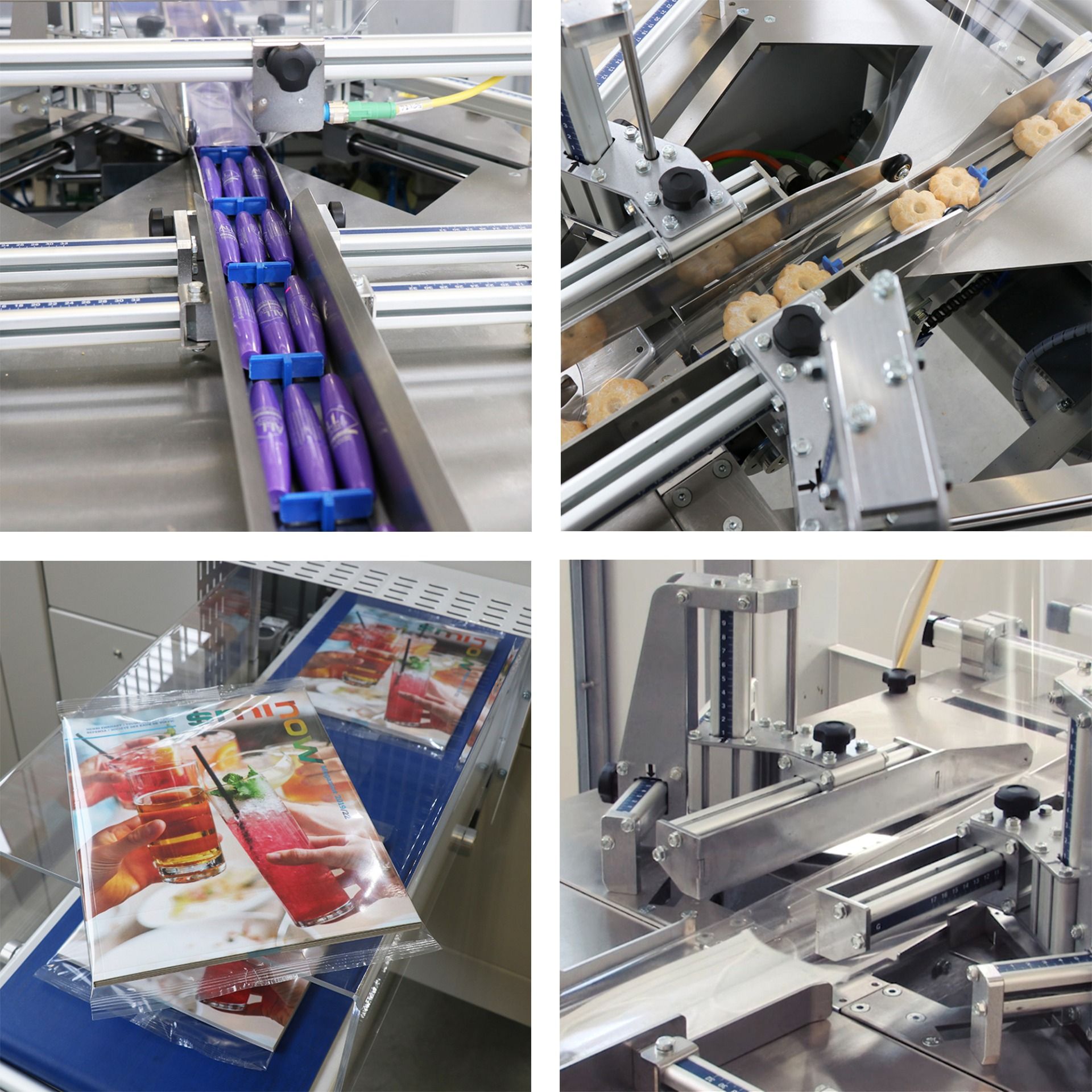

This automatic packaging machine with flow pack system (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. This version with rotary bar sealing system and upper reel packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack). The products are placed in packages made up of simple or coupled flexible material with a maximum output between 60 to 120 products/minute.
| Power supply | 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz |
| Installed power | 3500 W |
| Air pressure | 6 bar |
| Sealing bar | 350 mm |
| Maximum pack height | 120 mm |
| Average output up to | 60/ 120 ppm |
| Maximum size of film reel | 750 - ID 350 mm |
| Machine size | 4085 x 1580 x H2155-2255 mm |
| Machine weight | 780 kg |
