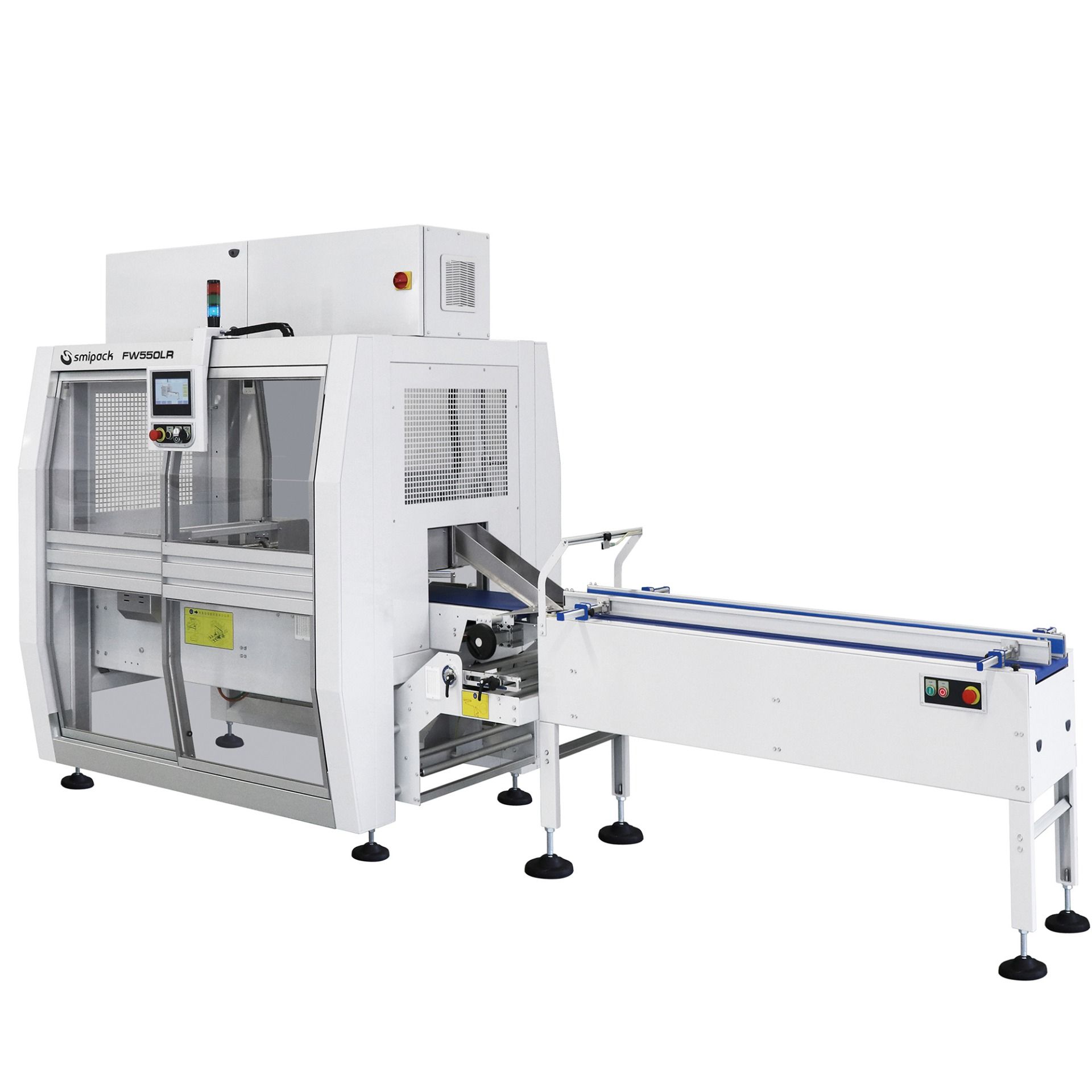

FW550LR
Flow pack with rotary sealing & lower lower reel

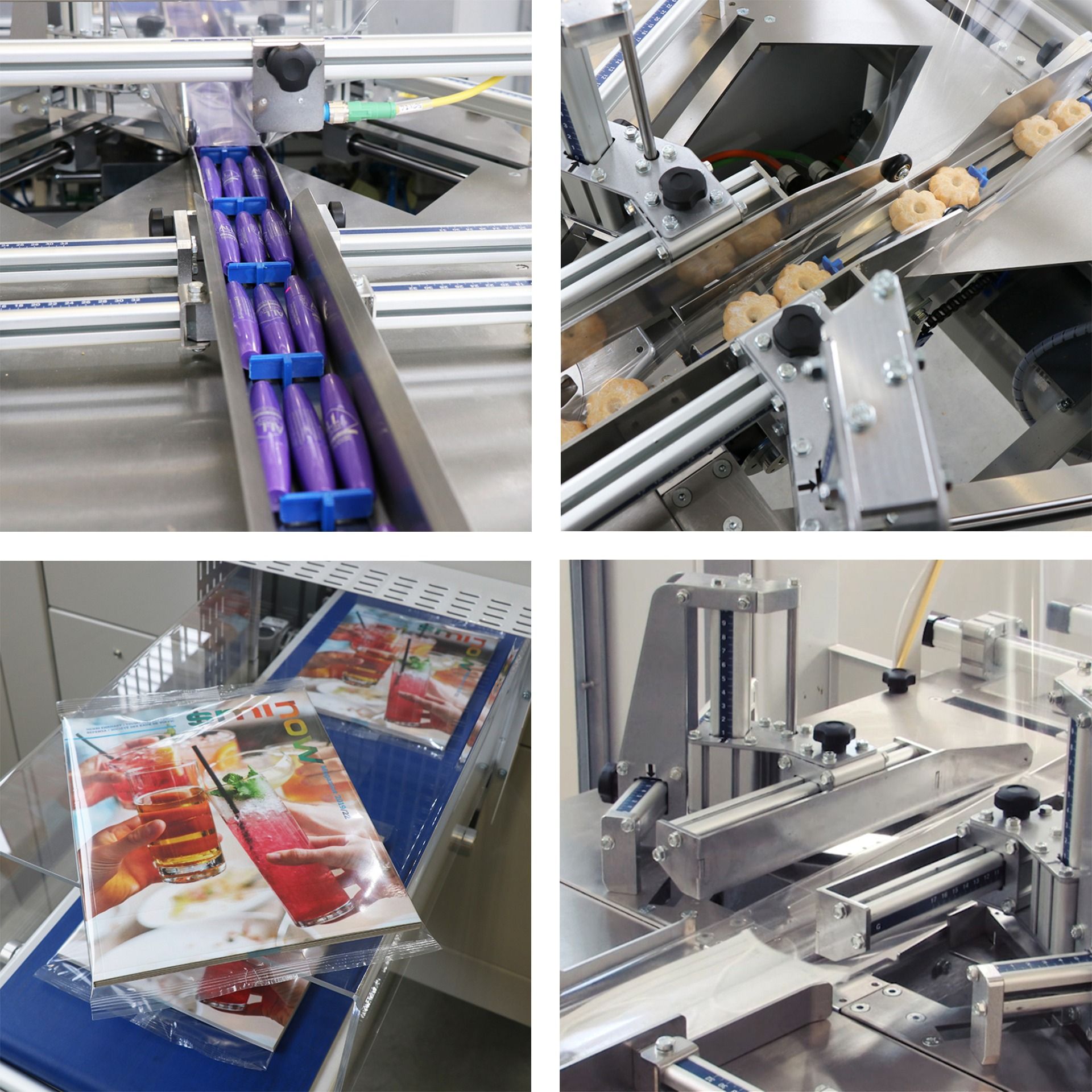

This automatic packaging machine with flow pack system (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. This version with rotary bar sealing system and lower reel packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack). The products are placed in packages made up of simple or coupled flexible material with a maximum output of around 100 products/minute.
| Power supply | 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz |
| Installed power | 5900 W |
| Air pressure | 6 bar |
| Sealing bar | 250 mm |
| Maximum pack height | 120 mm |
| Average output up to | 100 ppm |
| Maximum size of film reel | 550 - ID 350 mm |
| Machine size | 4085 x 1375 x H2155-2255 mm |
| Machine weight | 760 kg |
