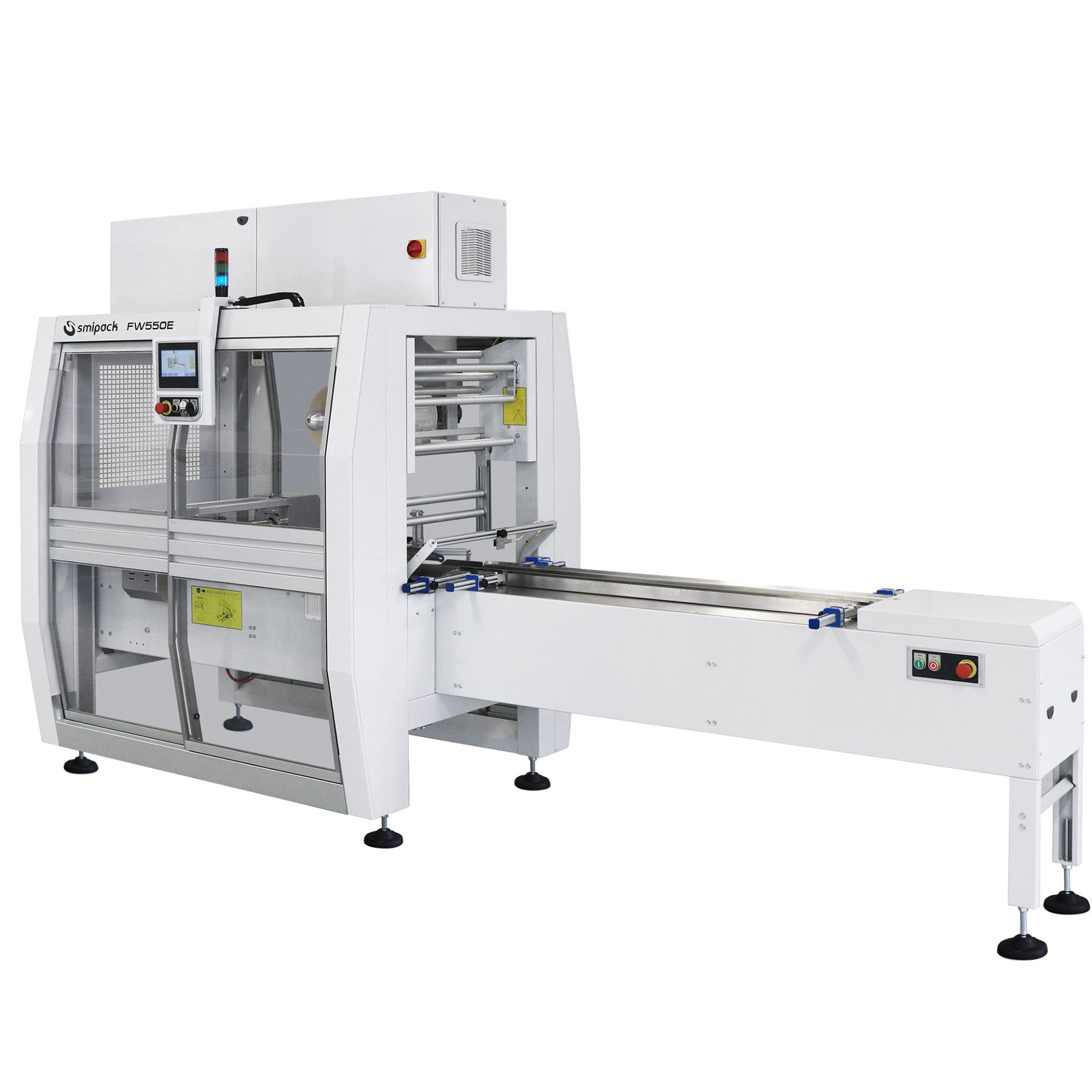

FW550E

Flow pack with rotary sealing & upper film reel

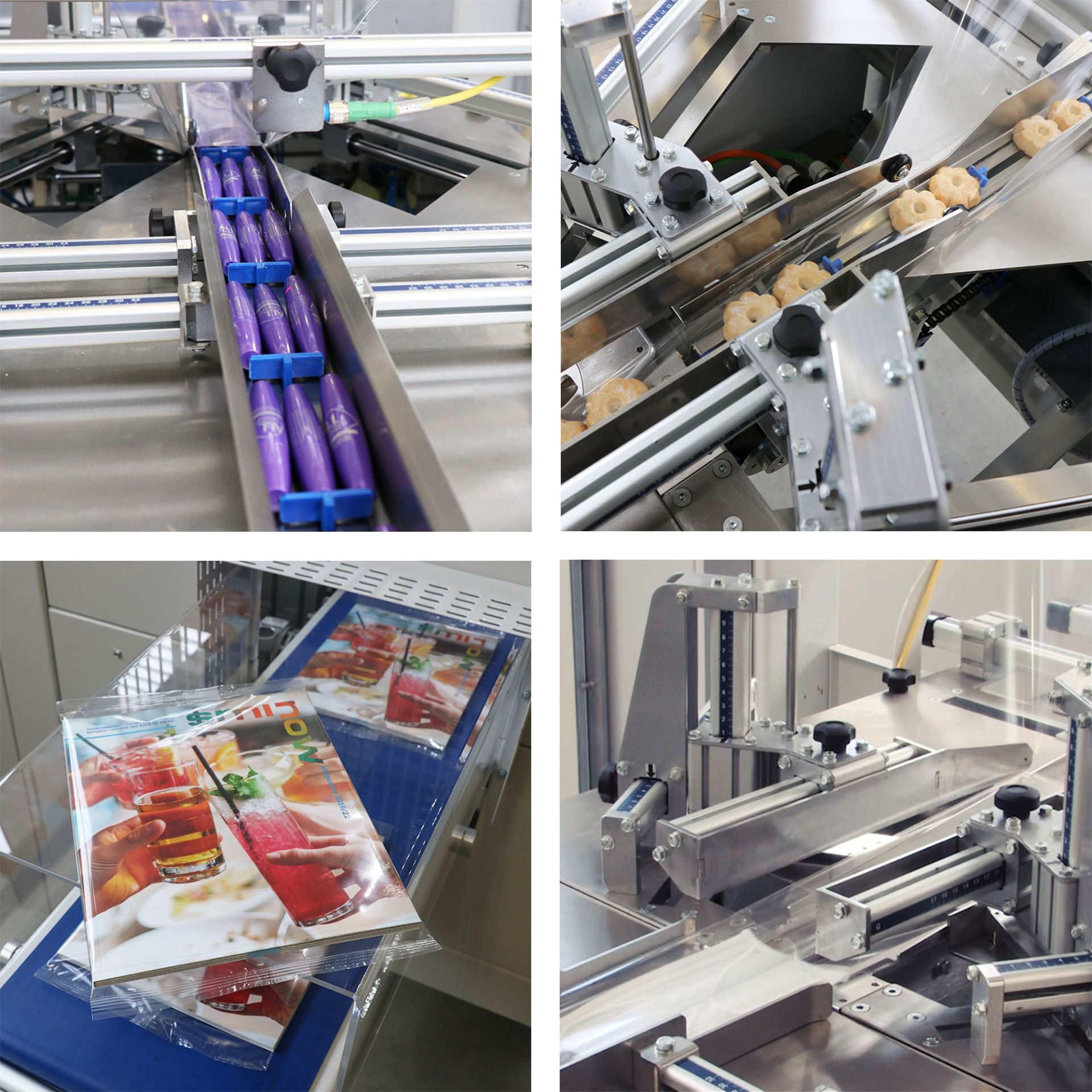

This automatic packaging machine with flow pack system (FW series) is designed according to Industry 4.0 and IoT (Internet of Things) technological platforms. This version with rotary bar sealing system and upper reel packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack). The products are placed in packages made up of simple or coupled flexible material with a maximum output between 60 to 120 products/minute.
Power supply 220-240/380-415 V, 3PH+PE/3PH+N+PE, 50/60Hz
Installed power 3500 W
Air pressure 6 bar
Sealing bar 250 mm
Maximum pack height 80 mm
Average output up to 60/ 120 ppm
Maximum size of film reel 550 - ID 350 mm
Machine size 4085 x 1375 x H2155-2255 mm
Machine weight 740 kg
