Automatskι stroj formiračica kutija selotejpom do 1100 kutija/sat

F344

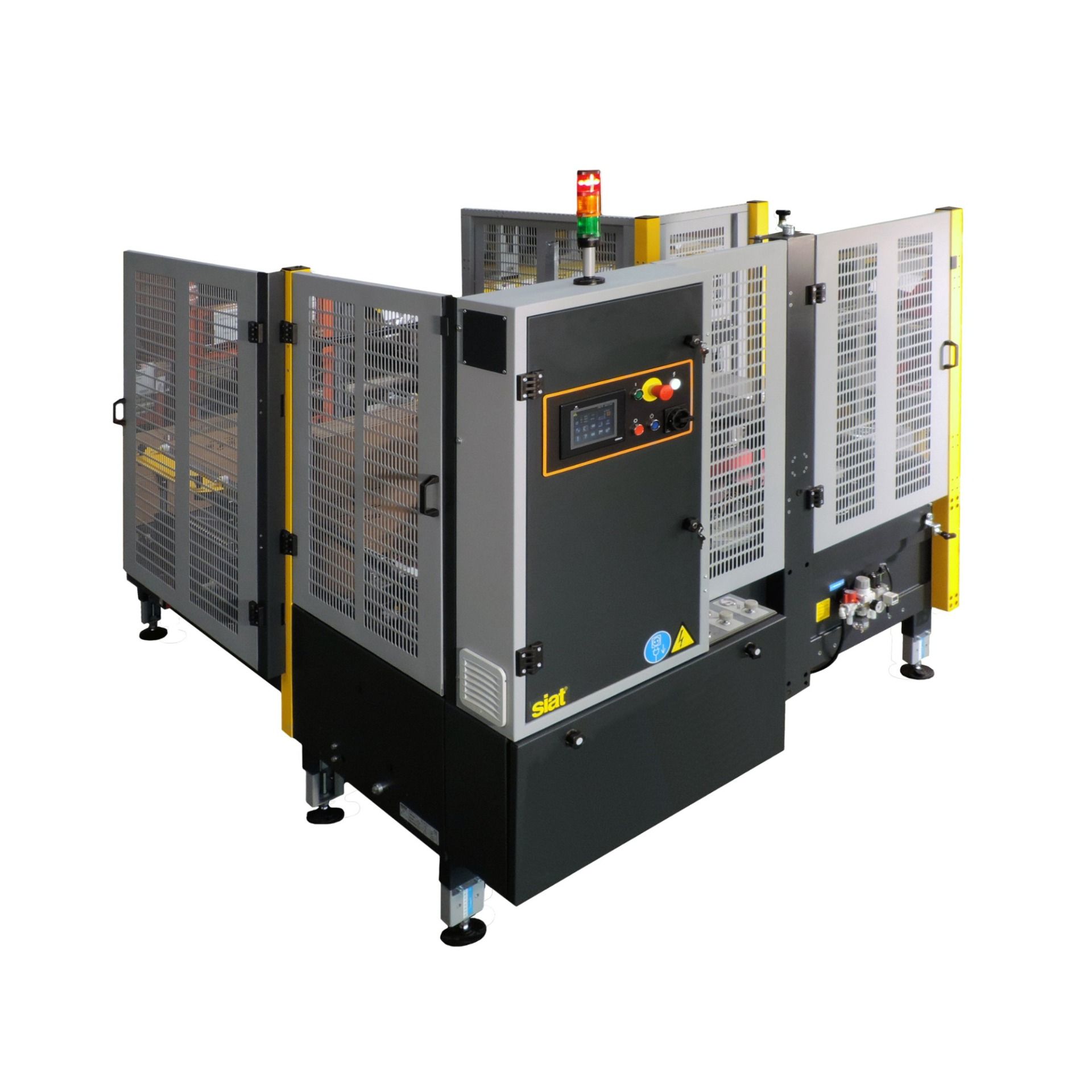

Automatska formiračica kutija selotejpom do 1100 kutija/sat

F344 je automatska formiračica kutija dizajnirana da formira kartonsku kutiju i zalijepit je selotejp trakom sa donje strane. Stroj može formirati i do 1100 kutija na sat ovisno o njihovim dimenzijama. Podešavanje stroja je jednostavno i brzo. F344 je proizvedena u skladu s CE normama.

F44-F144-F344-1 Product Info

Features

Box lenght min/max	150mm/450mm
Box width min/max	150mm/350mm
Box height min/max	150mm/450mm
Side drive belts	2 x 75 mm width each
Drive belts speed	30 m/min.
Max. Output	1100 bph (average)
Adjustment on carton box	by handles
Adjustment of working height	545 – 700 mm
Taping unit	K11R (50 mm) or K12R (75 mm)
Folder device	automatic four-flaps
Detect box height	no
Side safety protections	yes
Power supply	380/415V - 50Hz - 3P; 1,31kW
Air supply	5,5/7 bar; 9NL/per cycle
