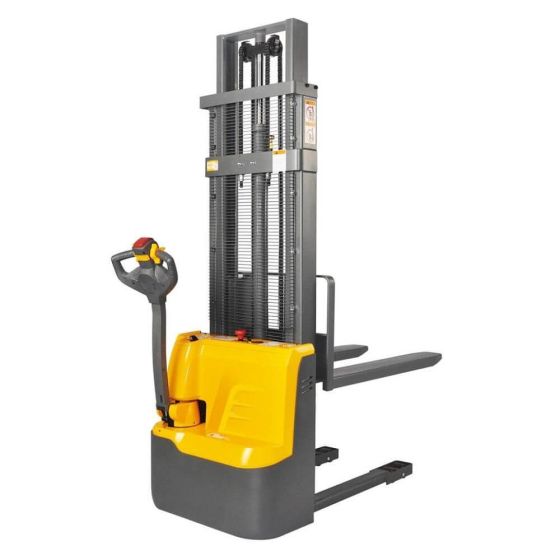

Potpuno električni viljuškar za podizanje od 1.500 kg do visine od 3.000 mm

CDD 15R-EN 1.5T/3.0M

Potpuno električni viljuškar za podizanje od 1.500 kg do visine 3.000 mm

Od 5.332,74 KM

CDD 15R-EN 1.5T/3.0M is a fully electric stacker truck with maximum lifting capacity of 1,500kg and maximum lifting height of 3,000mm.

Equipped with maintennace free GEL batteries with a total power of 24V/105Ah and an integrated charger for ease to use. It also features a powerful brushless motor, ensuring low maintenance costs and maximum performance.

It is the ideal solution for efficient and safe load handling. Designed for use in narrow spaces, it offers excellent maneuverability thanks to its small turning radius. It is perfect for stacking at heights of up to 3.0 meters and transporting loads over short distances.

Features

Lifting capacity:	n.a.
Lifting capacity till 1,600 mm:	1,500 kg
Lifting capacity till 2,500 mm:	x
Lifting capacity till 3,000 mm:	900 kg
Lifting capacity till 3,500 mm:	n.a.
Lifting capacity till 4,500 mm:	n.a.
Lifting capacity till 5,600 mm:	n.a.
Maximum lifting capacity:	3,000 mm
Mast height at lowest position:	2.090 mm
Mast height at highet position:	3,560 mm
Min. ground clearence:	90 mm
Fork length:	1,150 mm
Fork width (outer):	580 mm
Overall length:	1,800 mm
Overall width:	800 mm
Total weight (with battery):
Turning radius:	1,365 mm
Total weight (with battery):	550 kg
Max gradeability with/without load:	6/15 %
Battery specifications:	24/105 (V/Ah)
Aisle width with pallet 800x1200mm:	2,220 mm
Aisle width with pallet 1000x1200mm:	2,245 mm
Travel speed with/without load:	4.5/5 (km/h)
Lifting speed with/without load:	0.09/0.16 (m/sec)
Lowering speed with/without load:	0.19/0.11 (m/sec)
Drive motor power:	0.65 kW
Lifting motor power:	2.20 kW
Mast	Duplex
Warranty:	1 year
