Stroj - Automatska formiračica kutija selotejpom do 700 kutija/sat

F144

Automatska formiračica kutija selotejpom do 700 kutija/sat

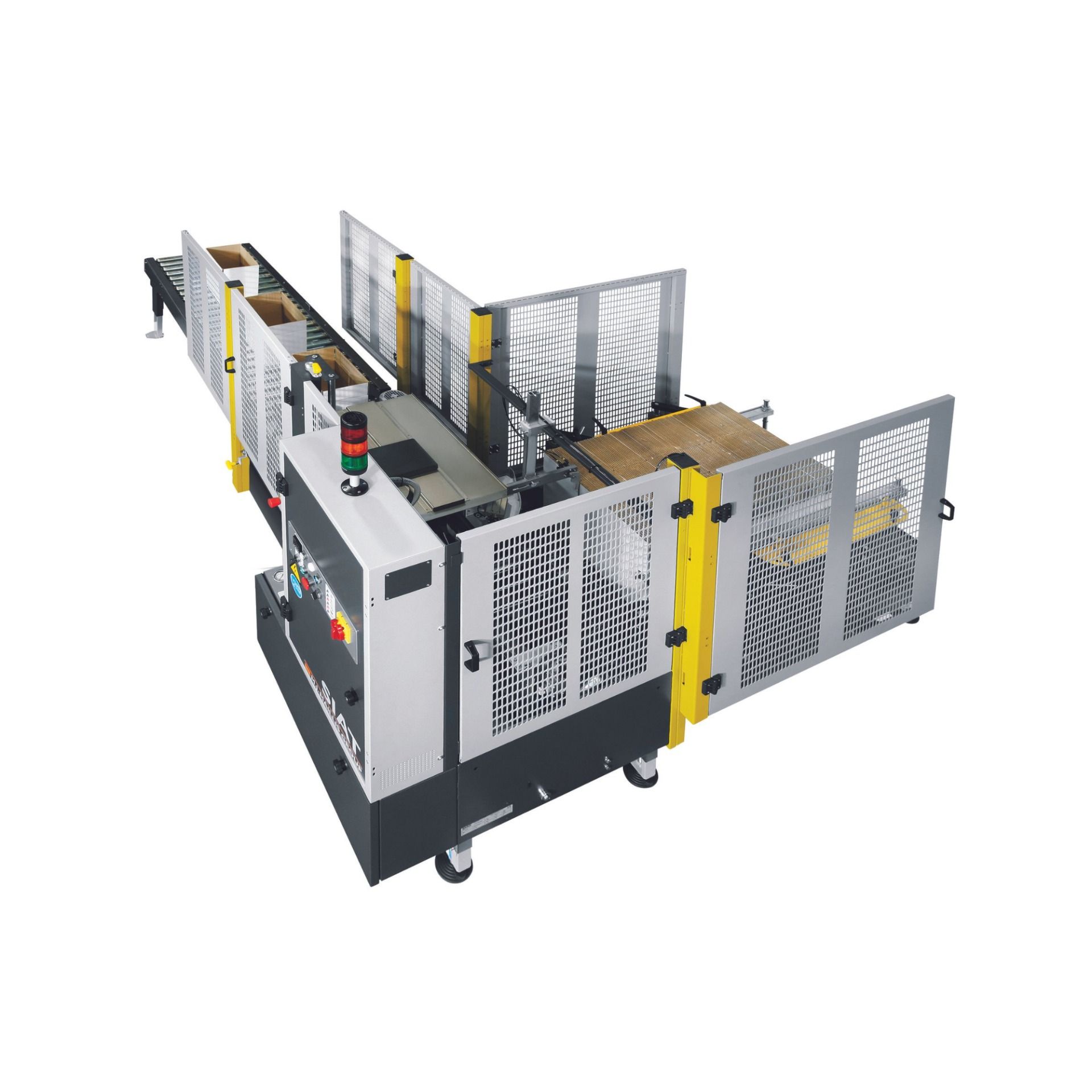

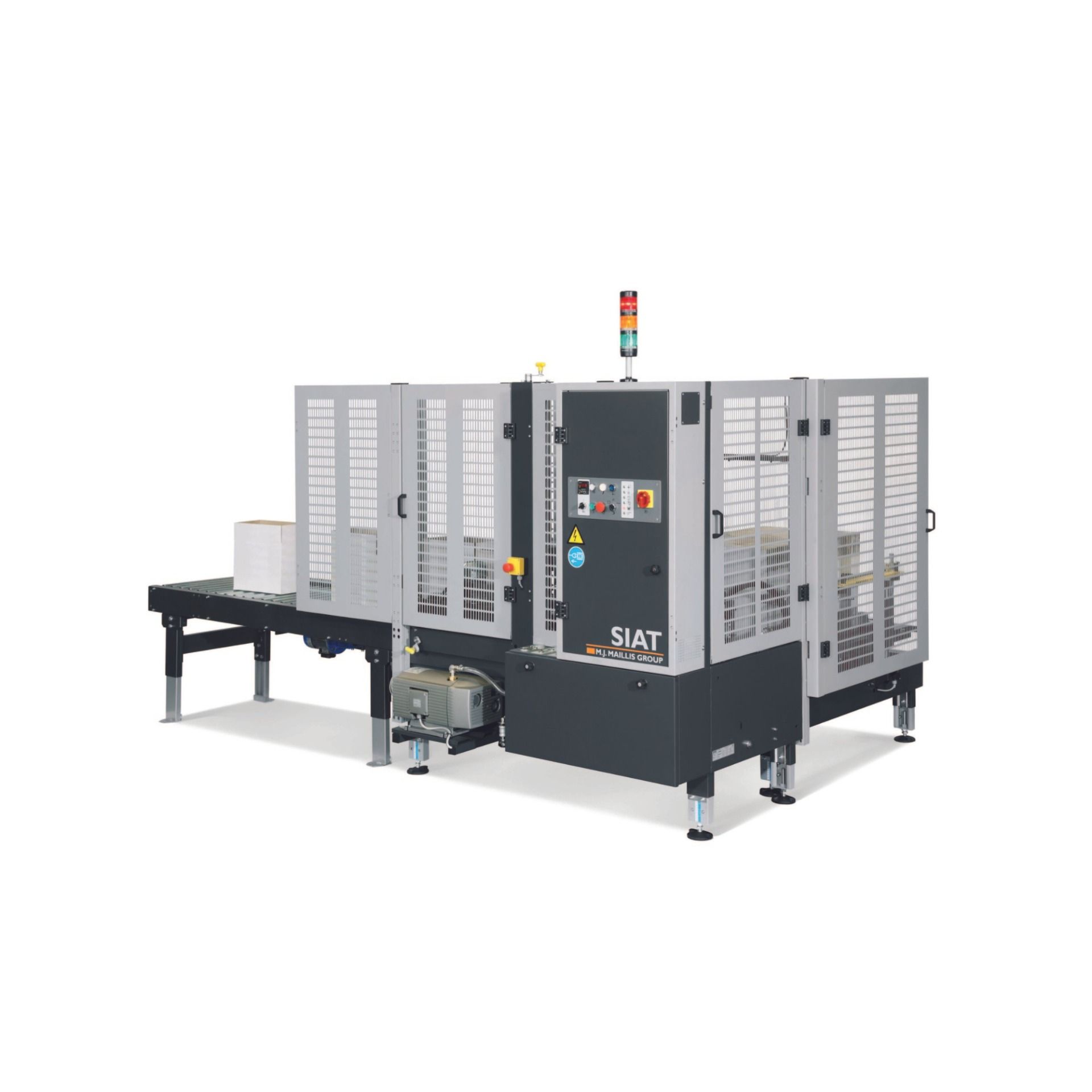

F144 je automatska formiračica kutija dizajnirana da formira kartonsku kutiju i zalijepi je selotejp trakom s donje strane. Stroj može formirati i do 700 kutija na sat ovisno o njihovim dimenzijama. Podešavanje stroja je jednostavno i brzo. F144 je proizvedena u skladu s CE normama.

F44-F144-F344 Product Info

Features

Box lenght min/max	200mm/450mm
Box width min/max	150mm/350mm
Box height min/max	150mm/450mm
Side drive belts	Yes
Drive belts speed
Max. Output	700 bph (average)
Adjustment on carton box	by handles
Adjustment of working height	545 – 700 mm
Taping unit	K11R (50 mm) or K12R (75 mm)
Folder device	automatic four-flaps
Detect box height	no
Side safety protections	yes
Power supply	380/415V - 50Hz - 3P; 0,36kW
Air supply	5,5/7 bar, 48NL/per cycle
